Product Specs
Generator Set
- Rating
- 1515 ekW (1893 kVA) Continuous
- Frequency
- 50/60 Hz
- Voltage
- 230 - 480 V
- IPP Overload 50Hz
- 1590 kW (1987 kVA)
- IPP Rated 60Hz
- 1705 kW (2131 kVA)
- IPP Overload 60Hz
- 1790 kW (2237 kVA)
Engine
- Engine
- Cat 3516C
- Fuel
- Diesel
Dimensions
- Height - Without Chassis
- 114 in
- Length - Without Chassis
- 480 in
- Weight - Without Chassis, With Fuel, Lube Oil and Coolant
- 70000 lb
- Width - Without Chassis
- 97.5 in
Standard Equipment
-
- Cat 3516c Heavy Duty Diesel Engine
-
- Heavy duty, dual element, PowerCore air cleaners with service indicators
- Triple, primary fuel filters with water separators and bypass valves for on-the-fly filters changes
- Secondary fuel filters on engine
- Full flow oil filters with water-cooled oil cooler. Requires API CI-4 or higher lube oil
- Lubricating oil system includes make-up system (113-L tank), oil drain lines routed to the engine rail, and quick evacuation system for faster, cleaner oil changes
- Jacket water heater (9 kW, 3-phase 480VAC) with electric pump
- Fuel cooler and electric fuel priming pump
- Electronic differential pressure monitoring of all filters
- Electronic ADEM™ A4 engine controls
- Dual 24V electric starting motors
-
- Sr-5 Generator
-
- Double-bearing, 1844-Frame, SR-5 generator with anti-condensation space heaters (1.2 kW, 480V)
- Brushless, form-wound, permanent magnet excited, thouree-phase, 4-lead design
- Class H insulation operating at Class F temperature for extended life
- Cat Integrated Voltage Regulator (Cat IVR)
- Stator winding and bearing temperature detectors monitored by RTD module
- Metallic mesh generator air inlet filters (2)
- System 4 insulation protection
-

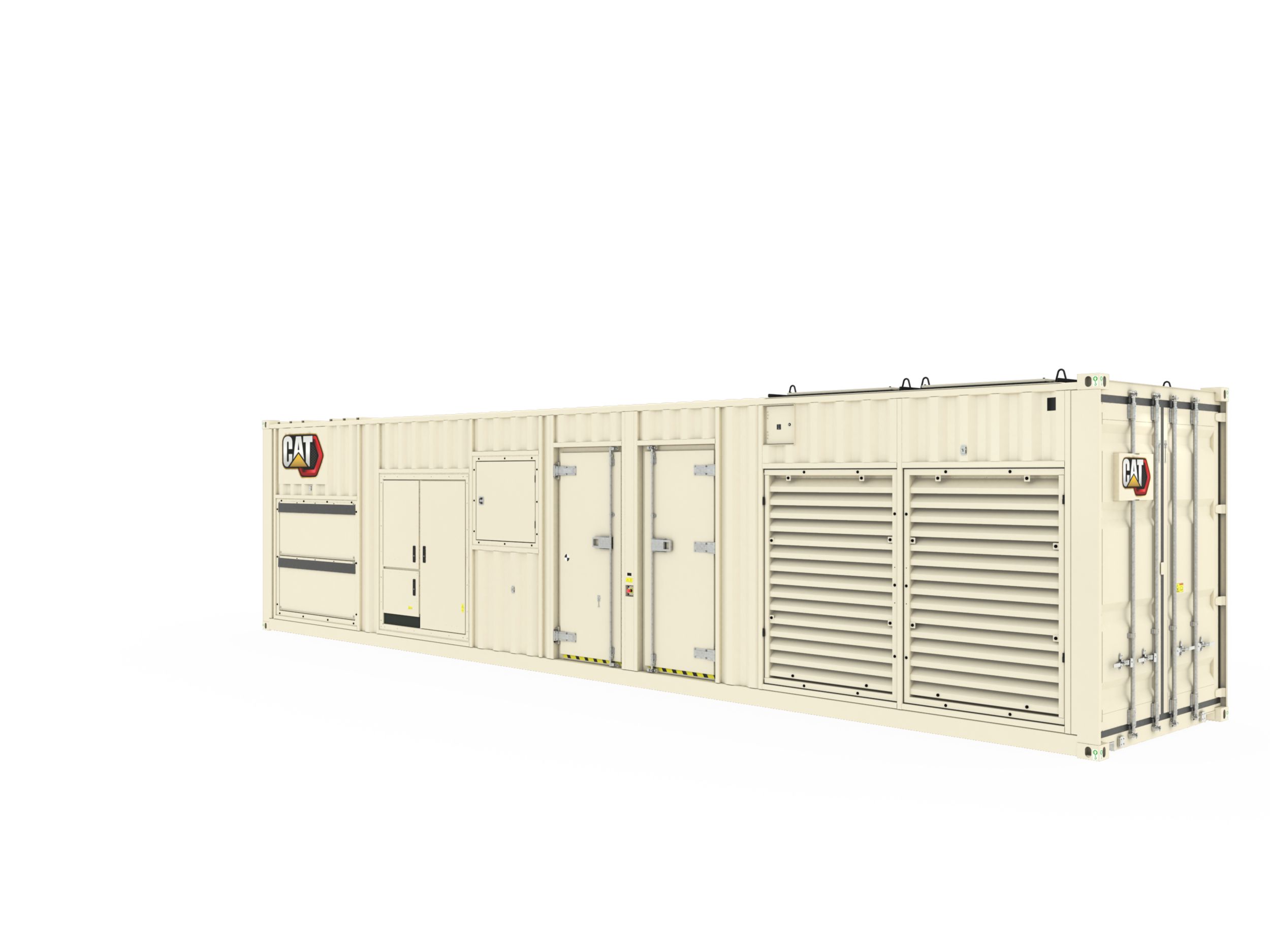

- 40' Iso High Cube Container
-
- 9-High stackable, CSC certified
- Sound attenuated, hinged, radiator intake louvers
- Sound attenuated package air intake louvers with foldable awnings
- Five (5) lockable personnel doors with panic releases
- Interior walls and ceilings insulated with 100 mm of acoustic paneling
- Side bus bar access door with external access load cable connections
- Shore power via distribution block connections for jacket water heater, battery charger, space heaters, and generator Anti-condensation Heaters
- Six (6) DC lights with 60-min timer
- Single-wall, 946-L (250gal) fuel tank; certified to BS799-5
- Solenoid fuel fill control valve for automated filling
- Sound attenuated to 75 dB(A) (50Hz) 81 dB(A) (60Hz) at 7m (23 ft)
- Four (4) 1400-CCA, Group 4D, maintenance-free batteries, and 50A battery charger
- Insulated exhaust silencer with 1.8m (6ft) stainless steel exhaust stack for increased site power density
- Engine vibration isolators
- Easy drain access to standard fluids
- Standard Cat decals (Optional) and painted Cat Power Module White
-
- Cooling
-
- Cooling package provides 49°C (120°F) ambient capability (50 & 60 Hz) at IPP Ratings @ 750m (2,460 ft)
- Vertical, non-stacked radiator cores with dimpled fins and vertical air discharge
- Variable frequency fan drive with smart fan control
- Cat Extended Life Coolant (ELC)
-
- Generator Controls And Protection
-
- EMCP 4.3 generator set controller
- Automatic start/stop with cool down timer
- Generator Protection features: 25, 32, 40, 50/51, 27/59, 81 O/U
- AGC-4 provides voltage and frequency adjust, base load / PF / load sharing / synchouronizer, auto start / stop control & generator CB control, SCADA Interface (Ethernet), fuel level indications & alarms, fuel tank fuel transfer control
- Reverse compatibility for interface to legacy power modules
- 100 kAIC, 4000A-Frame generator circuit breaker with LSIG trip unit
- Multi-mode operation (Island (kW/kVAR sharing, Auto Mains Failure, Peak Shaving, Base Load Power, Export, zero power transfer, power management with multiple units)
- Manual and automatic paralleling capability
- Metering display: voltage, current, frequency, power factor, kW, WHM, kVAR, and synchouroscope
-
- Quality
-
- Factory testing of complete power module
- CE Certified, NEMA, ISO and IEEE standards
- O&M manuals
